The product is a multi-functional electronic food preparation kitchen appliance which combines the functionalities of a mixer grinder, an immersion blender and a food processor into a compact frame. It provides a cordless immersion blender, which has a docking station to transfer the blender power to different jars via a belt drive and planetary gear system. This system allows for a greater range of usability of the jars, as well as different levels of torques and blending speeds by changing output power for different applications.

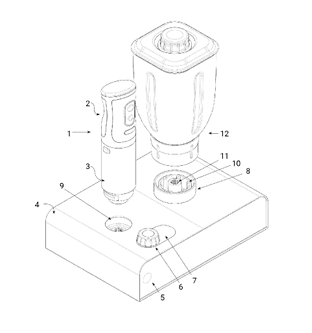

Figure (1) Sketch of the product 1. Immersion blender 2. Immersion blender battery and control module 3. Immersion blender motor module 4. Docking/storage base 5. Storage shutters 6. Control knob 7. Feedback screen 8. Jar/food processor dock port 9. Immersion blender dock port 10. Food processor output shaft 11. Blender jar output shaft 12. Liquidizing jar 13. Docking/storage base internal structure 14. Circuit board with rectifier transformer 15. Planetary gear 16. Belt 17. Immersion blender input shaft 18. Control interface circuit board 19. Storage for blender and shaft
Mixer grinder appliance of choice for new users due to its versatility and applications. However, common kitchen needs like handling hot items, portability and output food quality require users to buy additional appliances like immersion blenders to expand functionality. Owning multiple appliances for a household kitchen adds additional cost and eats up precious kitchen spaces and creates storage and maintenance issues. Thus, there is a need for a competitive and multi-usage appliance in the market.
- Integrated Features: The appliance offers a compact configuration which has the usability of multiple regular appliances without any compromise in power
- Unique Configuration: A novel configuration of the immersion blender with the jar via the usage of gears to offer more spin variations and greater range of usability
- Different power levels: Different power outputs given for different blending needs
- Clutter free configuration: Optimal configuration to facilitate optimal space utilization, ease of use, and appliance management
The prototype uses a 12V battery powered cordless immersion blender which when coupled with input shaft on the base at dock port, receives 24V of DC input from the circuit board using a rectified transformer at the base. This increased power is transferred to the output shaft via a belt drive, which is used in the jar coupled with the output shaft.
The food processor technology has been developed to a complete conceptual and design stage, with detailed specifications, working principles, and structural integration of components provided. It integrates features of multiple devices like mixer grinder and immersion blender. The invention appears ready for prototyping or manufacturing evaluation.
4
This invention promotes affordability and space-saving for users by combining multiple appliances into one. It reduces clutter, lowers the cost of purchasing separate kitchen devices, and enables cordless operation, making food preparation more efficient and accessible in both urban and rural households.
