The present invention is to provide an optimized mobile unit assembly (MUA) for collection of Municipal Solid Waste Litter (MSWL) comprising a Collection Chamber (CC) at bottom portion of the assembly, Centrifugal Air Blower (CAB) design unit mounted at top portion of the CC, two filter bags attached at bottom of CAB wherein the filter bags tagged to circular casing, horizontal duct connected to filter casing at the exit duct of the CAB to allow free flow of remaining air and dust particles into the filter bags, filter mesh attached to bottom of the CAB to pass light weight particulates of MSWL, suction hose pipe coupled to an inlet opening present at left hand side of the CC to allow free flow of air and MSWL collection and a movable handle installed at bottom of the inlet opening to allow free flow movement of hose pipe.

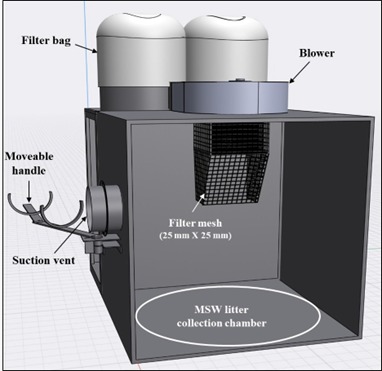

Figure 1. Schematic view of the Mobile Unit Assembly
Conventional municipal solid waste litter (MSWL) collection methods are labor-intensive, inefficient, and ineffective at separating waste from fine dust. Existing manual or basic vacuum systems lack automation, mobility, and energy efficiency, leading to poor performance and long collection times. A compact, mobile, and automated solution is urgently needed for efficient, real-time MSWL and dust collection with minimal human effort.
- Dual Collection Mechanism: This innovation enables simultaneous separation and storage of Municipal Solid Waste Litter (MSWL) and dust particulates in distinct filter bags.
- High Suction Performance: It achieves a velocity flow rate of 5,000 CFM at the nozzle inlet-superior to comparable existing technologies.
- Backward-Inclined Impeller Design: It enhances suction efficiency and reduces pressure losses.
- CAB Efficiency: The Centrifugal Air Blower (CAB) delivers 3000 m³/h inlet airflow with 70% overall performance efficiency at 2800 RPM.
- Real-time and Automated Operation: It enables minimal human intervention and automated litter collection across terrains.
- Modular and Mobile: The compact design is adaptable for mounting on mini-vans, trucks, and other vehicles.
- Manual Assist Option: Its flexible hose pipe with movable handle enables targeted cleaning in hard-to-reach areas.
- Energy Efficiency: It has stable power consumption (~1.57-1.67 kWh) across varying conditions, ensuring operational reliability.
- Time-Efficient: It is capable of collecting litter in 37 to 41 seconds per operation depending on hose type.
- Customizable Flow Rate: It is equipped with Variable Frequency Drive (VFD) for adjusting suction power based on waste density and type.
The prototype consists of a compact, mobile unit assembly (MUA) designed for efficient municipal solid waste litter (MSWL) collection. It integrates a centrifugal air blower (CAB) mounted on top of a collection chamber (CC), with backward- inclined impeller blades rotating at over 2800 rpm to generate high suction power. The unit features a flexible suction hose pipe with a manual handle for targeted waste collection and a nozzle inlet offering a high airflow velocity of 5,000 CFM. Dust and litter are separated using horizontally oriented filter bags at the back end, supported by a filter mesh and duct system. The assembly is powered by an induction motor connected to a portable generator, with optional integration of a variable frequency drive (VFD) for adaptive suction control based on waste type and density.
The patented technology has proven feasible in real-world urban settings through batch and pilot-scale evaluations, showing clear operational and economic advantages over conventional methods. A comprehensive techno-economic assessment confirmed its financial viability. Future upgrades will integrate sensor-based automation and data-driven monitoring to boost efficiency, reduce human intervention, and support scalable, smart city waste management solutions.
7
The proposed technology enhances public health by reducing exposure to urban litter and airborne particulates, minimizing health risks in densely populated areas. It automates manual waste collection, improving efficiency, worker safety, and urban sanitation in streets, parks, and markets. Supporting sustainability, it promotes eco-friendly waste handling and, with advanced automation, aligns with smart city development and modern waste management goals.
- Municipal solid waste (MSW) management
- Urban infrastructure maintenance
- Smart city projects Environmental sanitation services
- Transport and vehicle-mounted utility systems
- Public health and safety departments
Geography of IP
Type of IP
202321054032
547406
