An apparatus for determining formability of sheet metal using a Gleeble system
Abstract

An apparatus has been developed for determining the formability of sheet metal using a Gleeble system. This system features a specially designed die and punch to simulate industrial hot stamping processes on a lab scale, allowing for detailed analysis and formability testing of various materials under controlled conditions

1

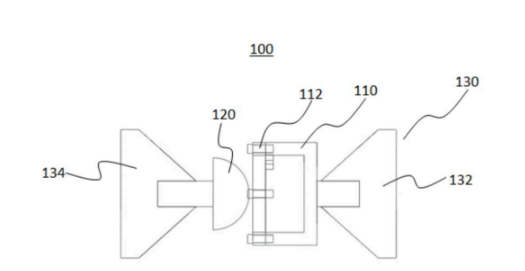

Figure (1) Image shows a schematic representation of the apparatus in accordance with an embodiment of the invention (110) the die; (112) a specimen holder; (120) a punch; (130) a Gleeble system; (132) first movable jaw; (134) second movable jaw.

Problem Statement

The demand for hot stamped components in the automotive industry has been increasing due to the advantages of the hot stamping process. However, existing experimental setups face challenges such as difficulty in formability determination, achieving uniform temperature, and controlling cooling rates. Larger experimental setups also struggle to achieve higher velocity and specific strain rates

Uniqueness of the Solution
  • Simulates industrial hot stamping processes on a lab scale.
  • Enables accurate formability determination at various temperatures and environmental conditions.
  • Allows for cooling using air, water, or argon.
  • The setup includes a die and punch with specific configurations to facilitate detailed analysis of smaller components.
Prototype Details

A prototype of the apparatus has been developed and tested, demonstrating its capability to simulate industrial hot stamping processes and perform formability tests on various materials under controlled conditions

Current Status of Technology

The technology has been designed, manufactured, and tested using a Gleeble-3800 machine. It has been successfully used to determine the formability of various materials including aluminum, magnesium alloys, and different grades of steel.

Technology readiness level

9

Societal Impact

The development of this apparatus can lead to more efficient and precise manufacturing processes in the automotive and materials industries, potentially reducing material waste and improving the quality of manufactured components. This can also accelerate the development of new materials with superior properties.

Applications or Domain
  • Automotive industry
  • Materials science research
  • Manufacturing of complex-shaped structural components

Geography of IP

Type of IP

Application Number

201921040315

Filing Date
Grant Number

452110

Grant Date
Assignee(s)
Indian Institute of Technology Bombay

IP Themes

Faculty

Department
