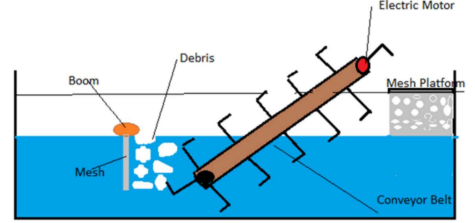

The invention relates to a system designed for removing floating debris from an open water channel. The system comprises a perforated screen positioned between the channel walls, with defined front and rear sides. Attached to the rear side of the perforated screen is a float that enables the screen to gradually rise from the bottom of the channel in response to the water flow rate, while ensuring that it remains close to the channel bed under normal conditions. An inclined conveyor belt is also integrated into the system, with its lower end placed adjacent to the front side of the perforated screen and its upper end elevated. The system further includes a drive mechanism that propels the conveyor belt from the lower end to the upper end, thereby facilitating the removal of accumulated floating debris.
Water pollution generally refers to the presence of harmful and objectionable materials in water, originating from sources such as sewers, industrial wastes, and rainwater runoff, in concentrations sufficient to render the water unfit for use. These pollutants can be broadly categorized as dissolved, suspended, and floating materials. Among them, floating debris includes plastic materials, wood, leaves, synthetic fibers, leather, and other lightweight substances capable of remaining afloat. In standard water treatment processes, mechanical primary treatment—which includes the removal of such floating debris—typically precedes biological or physicochemical treatment. It is considered more effective and environmentally responsible to remove floating debris directly from open channels before it enters larger water bodies. While vessel-based systems for debris removal already exist, they often suffer from high implementation and maintenance costs, significant energy consumption, and a reliance on operator intervention. Therefore, there is a clear need for an economical, low-power, and operator-independent system specifically designed for removing floating debris from open water channels.
- Single driving means to operate the system thereby saving on power consumption.
- Low Implementation and maintenance cost of the present system is low.
- No operator required to operate the system. In this regard, once the driving means is switched on the system operates on its own.
Invention is ready to be delivered to customers on a made-to-order basis. Once details of the water channel are provided manufacturing can start.

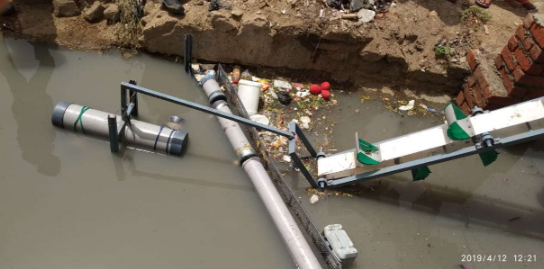

The invention is at TRL-8 and can be made to order, if details of the water channel are provided.
8
These floating debris not only cause risk to marine life from entanglement and indigestion but also cause damage to humans and cattle – affecting pristine habitats, contamination of beaches, hazardous to public health, injury to cattle grazing in coastal areas, contamination of harbours and marinas, damage to fishing vessels, damage to power stations and desalination plants, etc.All of this is avoided by the implementation of this water treatment system.
Automated removal of floating debris from open water channels.
Geography of IP
Type of IP
201821033390
508448
