MXenes are a class of 2D nanomaterials with versatile properties, but traditional synthesis methods produce nanosheets with varied sizes and multiple layers, limiting their effectiveness in applications such as bioimaging, biosensing, and photothermal therapy. This invention provides a process for synthesizing MXenes with a nanobipyramid morphology, resulting in ultra-small particles that offer increased surface area. This unique morphology enhances their suitability for biomedical and optical applications, particularly in biosensing and photocatalysis.

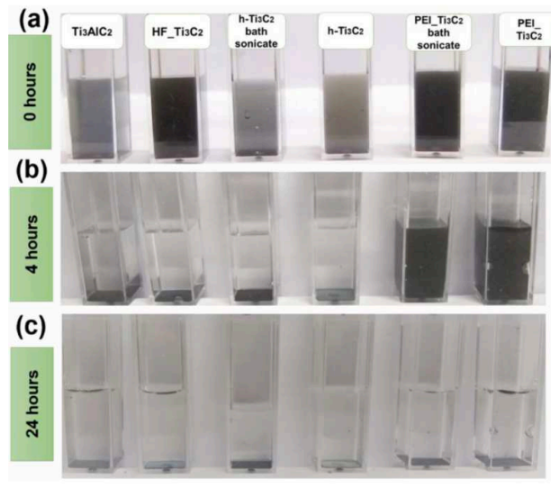

Figure (1) Dispersibility study of various MXene intermediates [Ti 3 AlC 2 , HF_Ti 3 C 2 , h-Ti 3 C 2 bath sonicated, h-Ti 3 C 2 , PEI_Ti 3 C 2 post-bath sonication and PEI_Ti 3 C 2 (from left to right)] at (a)h, (b) 4h and (c) 24h
MXenes are a class of 2D nanomaterials with versatile properties, but traditional synthesis methods produce nanosheets with varied sizes and multiple layers, limiting their effectiveness in applications such as bioimaging, biosensing, and photothermal therapy.
- Nanobipyramid Morphology: Produces MXenes with unique nanobipyramid shapes.
- Ultra-small Particle Size: Particles range from 1.9 nm to 4.8 nm in thickness.
- Hydrothermal Synthesis: A specific reaction at 200°C for 48 hours.
- Improved Surface Area: Enhances applications in biosensing and photocatalysis.
Versatile Functionalization: MXenes with various terminating functional groups like fluorine, hydroxyl, and other oxygen-containing groups.
Advantages of the technology:
- Enhanced Surface Area: Improves efficiency in applications like biosensing and photocatalysis.
- Uniform Morphology: Consistent particle size and shape improve reliability in applications.
- Scalability: The synthesis process is easily scalable for larger production.
The prototype involves synthesizing 1 gm of Ti3AlC2 powder using hydrofluoric acid, followed by delaminating with TMAOH, and final hydrothermal treatment at 200°C for 48 hours. The resultant Ti3C2 nanobipyramids are characterized by various methods such as UV-vis spectrum, photoluminescence, X-ray diffraction, TEM, and Raman spectroscopy.
The technology is patented.
1
- Medical Advancements: Improved diagnostic and therapeutic techniques.
- Technological Progress: Advances in nanotechnology and material science
- Biosensing: Improved sensitivity and accuracy due to increased surface area.
- Photocatalysis: Enhanced catalytic activity for environmental and energy applications.
- Bioimaging: Better imaging contrast and resolution.
- Photothermal Therapy: More efficient heat generation for medical treatments.
- Hydrogen Evolution Reaction: Improved efficiency in hydrogen production.
