This invention relates to a low-cost device for detecting methane gas using a silicon Schottky diode. The device works by using a light source, such as an IR lamp or solar radiation, and measures changes in current to detect the presence of methane. Methane absorbs specific wavelengths of light, causing a drop in current that the device can detect. The Schottky diode is chosen for its fast response time and ease of integration with existing technologies. The device is effective in various environments, including underwater, and operates across a wide temperature range. It offers a reliable and portable solution for methane detection in both industrial and domestic settings.

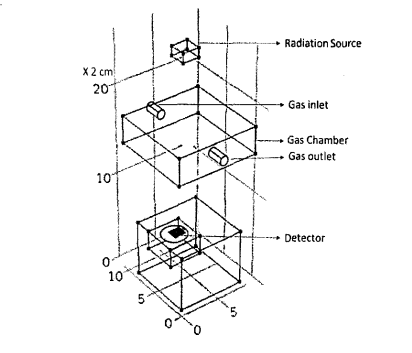

Figure 1. Table top setup for detection of methane
Methane is a hazardous gas that poses significant safety and energy concerns in various industrial and domestic settings. Existing methane sensors are often not specific to methane, require continuous monitoring, and struggle to operate in low oxygen environments. There is a need for a low-cost, portable, and reliable methane detection method that can function effectively in hostile environments, including aqueous mediums.
- Portable methane detection: The device is designed to be portable, making it convenient for use in various settings, including households and industrial sites.
- Low-cost fabrication: Utilizing silicon technology and aluminum contacts, the Schottky diode is inexpensive to produce, making it a cost-effective alternative to other detectors like p-i-n or pyroelectric sensors.
- Fast response time: The Schottky diode provides rapid detection of methane, which is crucial for timely safety measures in hazardous environments.
- Operational in hostile environments: The device functions effectively in a range of environments, including aqueous mediums, ensuring reliability in diverse conditions.
- Spectroscopic technique: By using a spectroscopic method, the device offers precise detection of methane, which is essential for accurate safety and energy monitoring.
- Broadband radiation sources: The device can use both IR lamp and solar radiation, providing flexibility in deployment and ensuring functionality under different lighting conditions.
NA
This device offers enhanced safety in industrial and domestic environments by providing early detection of hazardous methane gas concentrations. It reduces the risk of explosions and fires in industries such as oil and gas, landfills, and water treatment plants. Thus, it has potential to save lives and property by providing a reliable and responsive detection system in hostile environments.
The increased energy efficiency by monitoring methane levels, leads to better management of natural gas resources. The device contributes to environmental protection by detecting and mitigating methane leaks, a potent greenhouse gas.
The cost-effective, portable and easy-to-use solution for gas detection makes safety measures more accessible to a broader range of users, including households, increasing the adoption of safety practices.
- Oil and gas industry
- Landfills
- Water treatment plants
- Gas detection
- Portable gas detectors
Geography of IP
Type of IP
3916/MUM/2013
379347
