Patent
Apparatus for Generating AC Superimposed DC Signal
Abstract

The invention pertains to an apparatus for generating an AC Superimposed DC (ACsDC) signal, offering flexible control over both AC and DC components from either an AC or DC power source. It aims to enhance energy efficiency and support various industrial applications requiring precise power delivery.

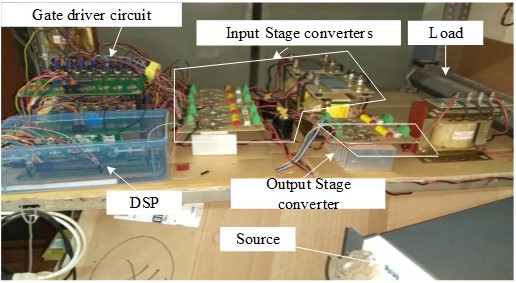

                    Figure (1) Block diagram showing the power conversion stages of ACsDC converters; (2) Experimental setup of ACsDC converter

Problem Statement

Current power electronics technologies often provide either AC or DC power separately, limiting applications that require both simultaneously, such as in electric precipitators or ozone generation. Conventional methods for combining AC and DC signals lack flexibility and efficiency. This invention addresses these limitations by introducing an apparatus capable of generating an AC Superimposed DC (ACsDC) signal from a single AC or DC power source, offering flexible control over both AC and DC components in the signal, thereby enhancing versatility and efficiency in various industrial applications.

Uniqueness of the Solution
  • AC and DC integration: This technology integrates AC and DC components flexibly from a single power source. It also enables precise control over AC and DC magnitudes in the generated signal.
  • Efficient Signal Generation: It utilizes isolation transformers and electronic converters for efficient signal generation. It also enhances versatility for applications requiring combined AC and DC power, from electric precipitators to high-power transmission systems.
Prototype Details

Currently at the stage of testing and evaluating the basic concept and confirming the basic formulation for realistic end-use representation.

Technology readiness level

4

Societal Impact

This technology aims to improve energy efficiency and support advanced industrial processes by enabling more flexible and efficient power delivery.

Applications or Domain
  • Electric Power Transmission: Enhances power transmission efficiency in electric grids
  • Industrial Manufacturing: Facilitates precise power control in industrial manufacturing processes
  • Renewable Energy Systems

Geography of IP

Type of IP

Application Number

201621033871

Filing Date
Grant Number

430673

Grant Date
Assignee(s)
Indian Institute of Technology Bombay
**This IP is owned by IIT Bombay**
